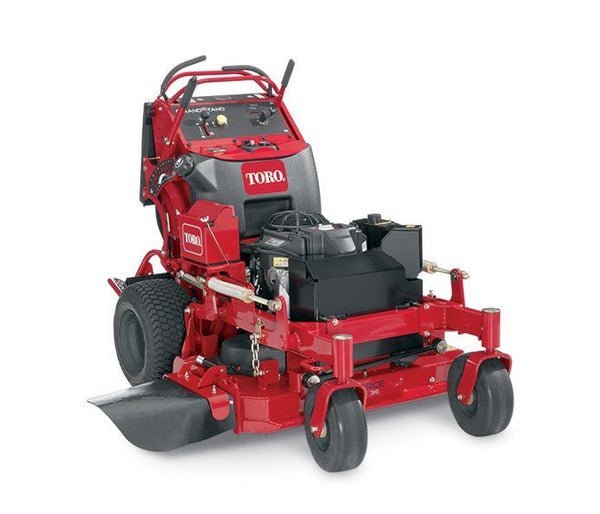

Toro GrandStand 36 in. 15 HP 603cc (74534)

Toro GrandStand 36 in. 15 HP 603cc (74534) Specifications

Specification
Details

Engine
15 HP* (11 kW) Kawasaki FS541V 603cc

Fuel Capacity
Gasoline – 7.8 gallons (29.5 L)

Cutting Width
36″ (91.4 cm)

Blade Tip Speed
18,500+ ft/min (5,640 m/min)

Blade Type
.25″ (.6 cm) heat-treated steel

Carrier Frame
3″ x 1.5″ x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)

Caster Tires
11″ x 4″ – 5″ (28 cm x 10.2 cm – 12.7 cm) flat-free semi-pneumatic

Clutch
Electromagnetic

Controls
Twin lever

Deck Design
7-gauge 36″ (91 cm) TURBO FORCE with bull-nose bumper

Discharge Chute
Rubber

Drive System
Pumps (10cc/rev) & Wheel Motors (10 cir)

Drive Tires
18″ x 8.5″ – 8″ (46 cm x 22 cm – 20 cm)

Engine Displacement
603cc

Ground Speed
8.0 mph forward (12.9 km/h)

Height of Cut
1″ – 5″ in 1/4″ (2.5 cm – 12.7 cm in 6 mm) increments

Hour Meter
Standard

Hydraulic Fluid
Synthetic

Comfort Platform
Foldable Operator Platform with Suspension

Spindle Bearings
Maintenance-free

Spindle Housing
9 3/8″ (23.8 cm) diameter cast iron

Weight
833 lbs. (377.8 kg)
