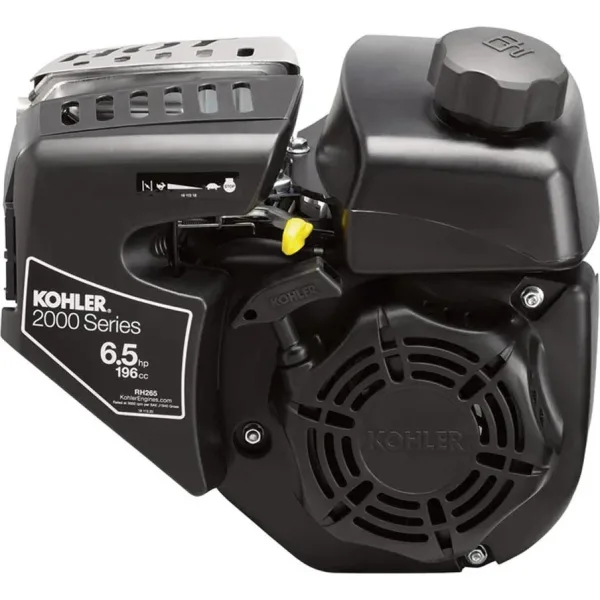

Kohler RH265 3103 Horizontal Engine

Kohler RH265 3103 Horizontal Engine
Kohler RH265-3103 horizontal single-cylinder OHV 2000 Series engine is 196cc and puts out 6.5 HP (maximum horsepower). This RH265 has a 0.75″ x 2.42″ crankshaft, an easy-pull recoil starter, quiet muffler with heat shield and variable speed. It replaces model PA-RH265-0001.

BRAND
Kohler

MODEL NUMBER
PA-RH265-3103

REPLACES MODELS
PA-RH265-0001

WARRANTY
2 Year

SHIPPING WEIGHT
33

DISPLACEMENT
196cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
0.75″ x 2.42″

CRANKSHAFT DIAMETER
0.75″

CRANKSHAFT LENGTH
2.42″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT KEYWAY WIDTH
3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

AIR CLEANER TYPE
Foam Element

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

BOLT CIRCLE
3 -5/8″

PTO HEIGHT
4 – 11/64
