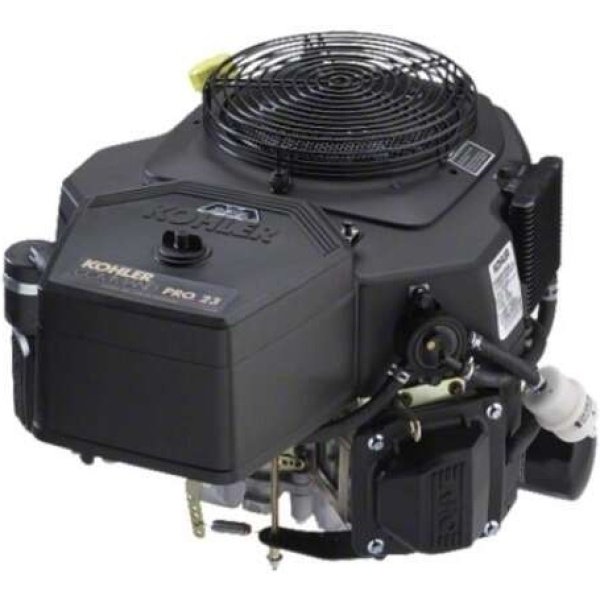

Kohler CV680 3002 Vertical Engine

The Kohler CV680 3002 is a 674cc, V-Twin, vertical-shaft engine designed for heavy-duty outdoor equipment such as lawn tractors and commercial mowers. With 23 horsepower, it delivers reliable, smooth, and efficient power.

BRAND
Kohler

MODEL NUMBER
PA-CV680-3002

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
107

DISPLACEMENT
674cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Vertical

FUEL SYSTEM
Gasoline

CRANKSHAFT DIMENSIONS
1″ x 3.16″

CRANKSHAFT DIAMETER
1″

CRANKSHAFT LENGTH
3.16″

CRANKSHAFT KEYWAY WIDTH
1/4″

CYLINDERS
2

AIR CLEANER TYPE
Large Capacity Dual Element

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
60

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CHOKE CONTROL
Remote

BOLT CIRCLE
None
