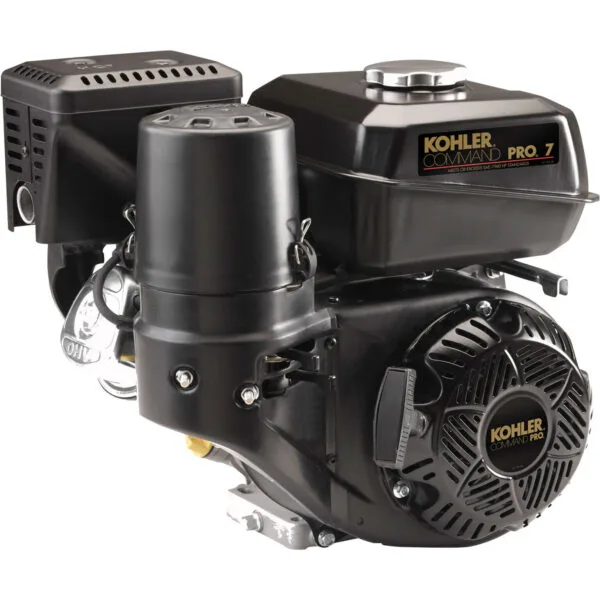

Kohler Command Pro Horizontal Engine 208cc 3 4in x 2 7 16in Shaft Model PACH2703152

Kohler Command Pro Horizontal Engine 208cc 3 4in x 2 7 16in Shaft Model PACH2703152
This Kohler Command Pro horizontal engine features a 4-cycle, slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access.

Brand
Kohler Engines

Manufacturer’s Warranty
3 year limited warranty

Ship Weight
46.0 lbs

Engine Displacement
208 cc

Engine Type
Command Pro OHV

Start Type
Recoil

Shaft Diameter
3/4 in

Shaft Length
2.43 in

Shaft Output
Horizontal

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

Bearing Type
Ball

Cylinders (qty.)
1

Cylinder Bore
Cast iron

Compression Ratio
8.5:1

Cooling System
Air cooled

Bore
2.8 in

Air Cleaner Type
Cyclonic

Fuel Tank
Yes

Fuel Type
Gasoline

Fuel Tank Capacity
4 qt

Fuel Filter
Fill neck, in tank, carburetor inlet

Oil Capacity
0.63 qt

Low Oil Alert
Yes

Lubrication System
Splash

Ignition System
Electronic

Governor System
Mechanical

Carburetor
Float

Max. RPM
3,600

Muffler Included
Yes

Auto Compression Release
Yes

Bolt Circle
3.625 in

Dimensions L x W x H (in.)
12.68 x 15.18 x 14.18 in
