Keysight 1147B Current Probe: Precision Measurement for Infiniivision Series

Features and Specifications

Keysight 1147B Current Probe for Infiniivision Series

Product Overview

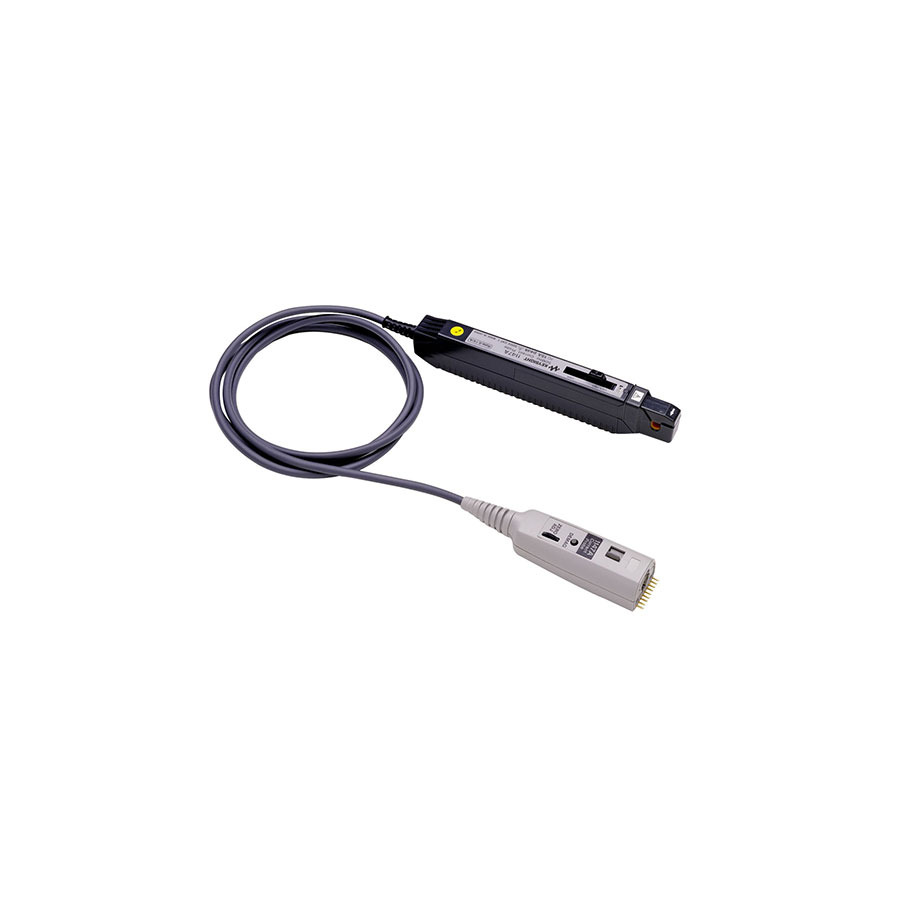

The Keysight 1147B Current Probe is a high-performance, AC/DC current probe designed for use with Infiniivision oscilloscopes. It offers a wide measurement range of 10 mA to 15 A, a bandwidth of 50 MHz, and a maximum voltage rating of 300 V. The 1147B is ideal for measuring current in a variety of applications, including power electronics, motor control, and automotive electronics.

Features

AC/DC current measurement
Measurement range: 10 mA to 15 A
Bandwidth: 50 MHz
Maximum voltage rating: 300 V
1.5m cable length
Auto-ranging
Zero offset adjustment
Overload protection

Specifications

| Specification | Value |
|—|—|
| Measurement range | 10 mA to 15 A |
| Bandwidth | 50 MHz |
| Maximum voltage rating | 300 V |
| Cable length | 1.5m |
| Accuracy | ±2% of reading |
| Offset adjustment range | ±100 mA |
| Overload protection | 30 A |

What’s in the Box

Keysight 1147B Current Probe
User manual

Benefits

High accuracy and wide measurement range
Wide bandwidth for capturing fast transients
High voltage rating for safe use in high-voltage applications
Auto-ranging for ease of use
Zero offset adjustment for precise measurements
Overload protection for added safety

Value

The Keysight 1147B Current Probe is a valuable tool for engineers and technicians who need to measure current in a variety of applications. It offers high performance, accuracy, and safety, making it an ideal choice for demanding applications.
