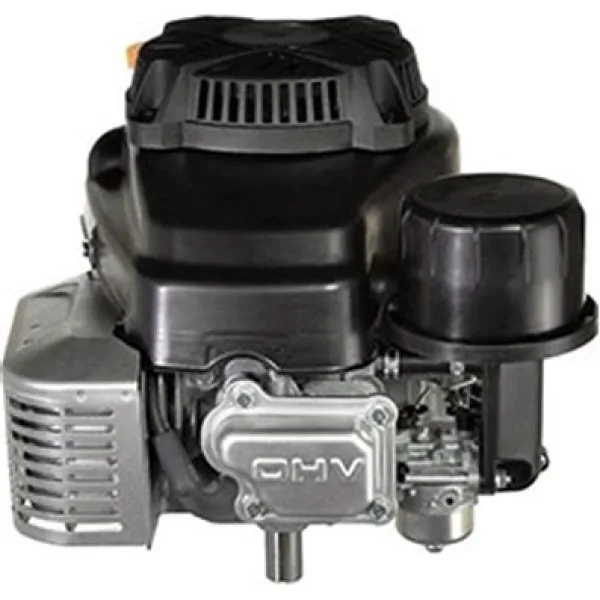

Kawasaki FJ180V M17 S Vertical Engine FJ180V BM17 S

Kawasaki FJ180V-M17-S 179cc, 6 HP, vertical, OHV, 4-cycle single-cylinder engine. This FJ180V KAI engine has a 25mm x 80mm (3-5/32″) crankshaft, a recoil starter and low tone muffler with guard. A fuel tank is not included with this engine. With features like pressurized lubrication and ball bearing supported crankshafts, Kawasaki FJ Series engines deliver reliable power while keeping the operator comfortable.

BRAND
Kawasaki

MODEL NUMBER
FJ180V-M17-S

WARRANTY
3 Years

SHIPPING WEIGHT
30

DISPLACEMENT
179cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
25mm x 3-5/32″

CRANKSHAFT DIAMETER
25mm

CRANKSHAFT LENGTH
3-5/32″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT KEYWAY WIDTH
3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Liner

AIR CLEANER TYPE
Dual Element KAI

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
0.6 qt

LOW OIL ALERT
No

IGNITION SYSTEM
Electronic Spark

CARBURETOR TYPE
Internally Vented

MAX RPM
3600

BOLT CIRCLE
8
