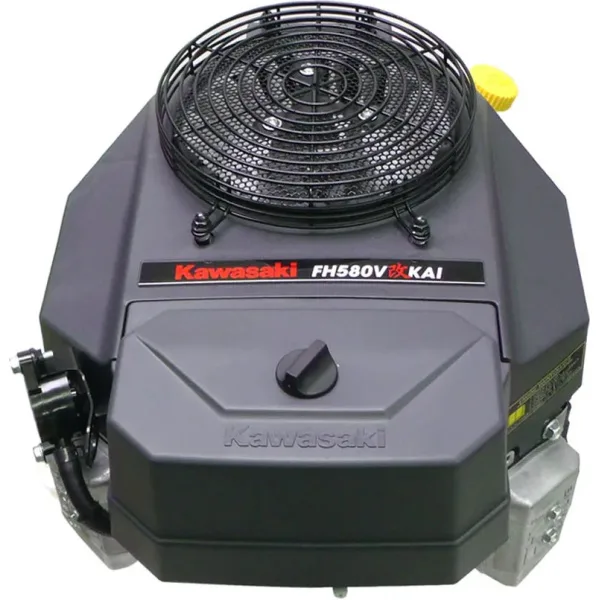

Kawasaki FH580V S20 S Vertical Engine FH580V ES20S

Kawasaki FH580V-S20-S vertical OHV 4-cycle KAI engine is 585cc and puts out 19.0 HP (maximum horsepower). This FH580V KAI has a 1″ x 80mm crankshaft, an electric starter, an oil filter side muffler and a 15-amp charging coil. With hemispherical combustion chambers and overhead V-valve technology, Kawasaki FX Series engines provide reliable, commercial-grade strength for outstanding power and smooth operation.

BRAND
Kawasaki

MODEL NUMBER
FH580V-S20-S

WARRANTY
3 Year

SHIPPING WEIGHT
71.2

DISPLACEMENT
585cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 80mm

CRANKSHAFT DIAMETER
1″

CRANKSHAFT LENGTH
80mm

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element KAI

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
1.9 qt

LOW OIL ALERT
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Internally Vented

CHOKE CONTROL
Remote

MAX RPM
3600

BOLT CIRCLE
10
