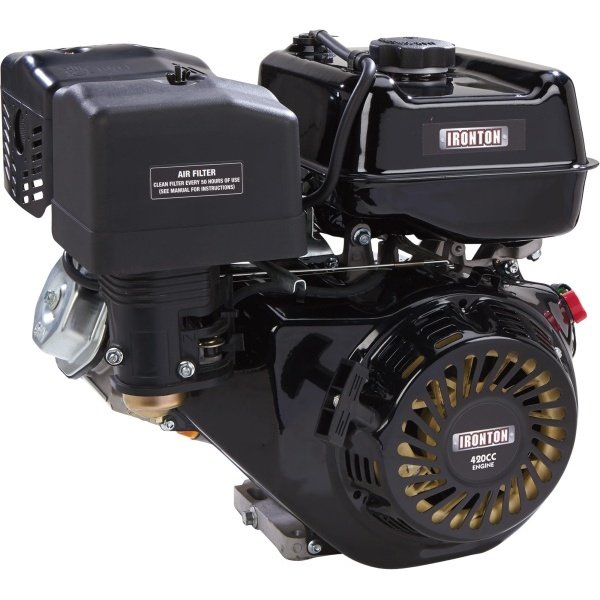

Ironton OHV Horizontal Engine 420cc 1in. 25.4mm x 2 27 32in 72.2mm Shaft

Ironton OHV Horizontal Engine 420cc 1in. 25.4mm x 2 27 32in 72.2mm Shaft

Brand
Ironton

Manufacturer’s Warranty
3 months parts / 3 months labor

Ship Weight
75.0 lbs

Engine Displacement
420 cc

Engine Type
OHV

Start Type
Recoil

Shaft Diameter
1 in

Shaft Length
2.84 in

Shaft Diameter Metric
25.4 mm

Shaft Length Metric
72.2 mm

Shaft Output
Horizontal

Shaft Keyway
0.25 in

Shaft End Tapped (Diameter (in.)/Threads per inch)
3/8-24 UNF2B

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

PTO Height
5.2 in

Cylinders (qty.)
1

Cylinder Bore
Cast iron

Cooling System
Air cooled

Bore
3.54 in

Stroke
2.6 in

Air Cleaner Type
Pleated paper w/foam pre-cleaner

Fuel Tank Capacity
6.34 qt

Oil Capacity
1.1 qt

Low Oil Alert
Yes

Lubrication System
Splash

Ignition System
Electronic

Governor System
Mechanical

Carburetor
Float/choke

Max. RPM
3,800

Muffler Included
Yes

CARB Approval
No

Bolt Circle
5, 6.5 in

Mounting Base Length
3.7 in

Mounting Base Width
7.7 in

Dimensions L x W x H (in.)
19.7 x 17.7 x 19.7 in
