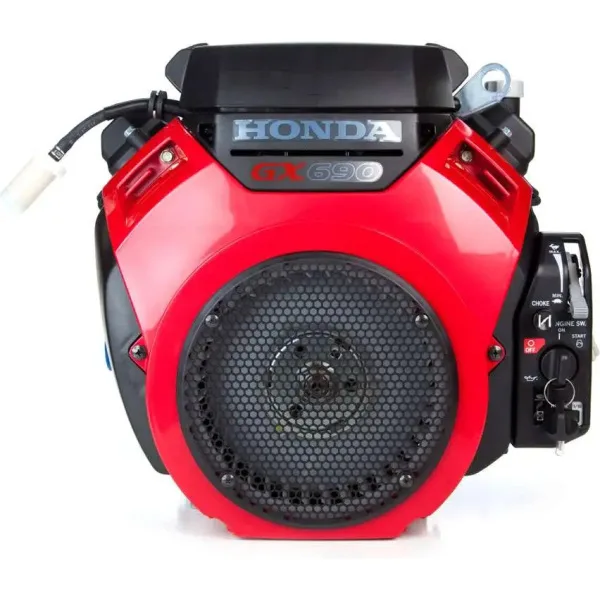

Honda GX690 TXA2 Horizontal Engine

Honda GX690 TXA2 Horizontal Engine
Honda GX690 TXA2 (GX690RHTXA2) horizontal OHV V-twin engine is 688cc and puts out 22.1 net HP. This Honda GX V-Twin has a 1-1/8″ x 3.78″ crankshaft (Tapped 7/16-20). The engine has electric start, a 12V 17-amp charging system, key switch, manual choke and throttle controls, fuel pump and oil alert system.

BRAND
Honda

MODEL NUMBER
GX690-TXA2

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
112

DISPLACEMENT
688cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1-1/8″ x 3.78″

CRANKSHAFT DIAMETER
1-1/8″

CRANKSHAFT LENGTH
3.78″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT KEYWAY WIDTH
1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
68

LOW OIL ALERT
Yes

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Digital CDI with Variable Ignition Timing

CARBURETOR TYPE
Two Barrel Float Valve, Internal Vent

CHOKE CONTROL
Manual

BOLT CIRCLE
5,6-1/2,7-3/4

PTO HEIGHT
5 – 1/4
