Honda GX270 PA2 Horizontal Engine

Honda GX270 PA2 Horizontal Engine

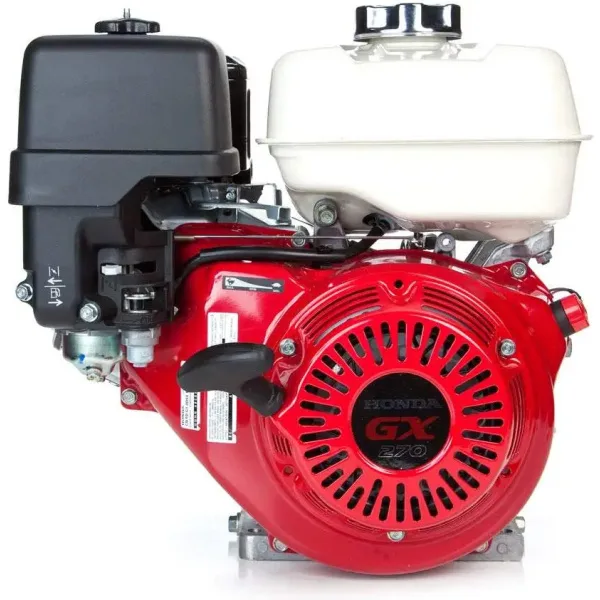

The Honda GX270 PA2 is a 270cc, air-cooled, 4-stroke, horizontal-shaft engine designed for a variety of commercial and industrial applications. It provides 8 horsepower and is commonly used in equipment such as pressure washers, water pumps, and generators.

BRAND
Honda

MODEL NUMBER
GX270-PA2

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
66

DISPLACEMENT
270cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Threaded

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ Threaded x 3-1/2″

CRANKSHAFT LENGTH
3-1/2″

CRANKSHAFT END TAPPED SIZE
N/A

CRANKSHAFT KEYWAY WIDTH
None

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Dual Element

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
38

LOW OIL ALERT
No

LOW OIL SHUTDOWN
Yes

IGNITION SYSTEM
Digital CDI with Variable Ignition Timing

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

BOLT CIRCLE
5,6-1/2

PTO HEIGHT
5 – 1/4
