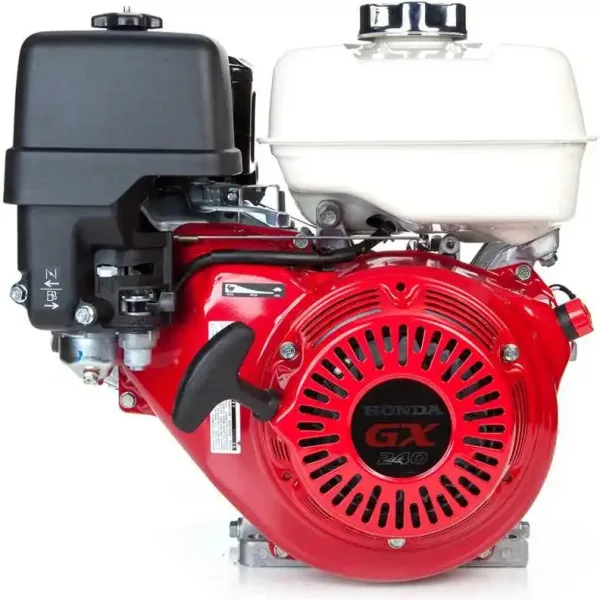

Honda GX240 HA2 Horizontal Engine

Honda GX240 HA2 Horizontal Engine
Honda GX240 HA2 (GX240UT2HA2) horizontal OHV 6:1 gear reduction engine is 270cc and puts out 7.9 net HP. This Honda GX has a 1″ x 3.37″ crankshaft. The engine has recoil start, a standard muffler with exhaust pipe protector and spark arrestor, and an oil alert system, but no clutch.

BRAND
Honda

MODEL NUMBER
GX240-HA2

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
71

DISPLACEMENT
270cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Gear Reduction

GEAR REDUCTION
6:01

CRANKSHAFT DIMENSIONS
1″ x 3.37″

CRANKSHAFT LENGTH
3.37″

CRANKSHAFT END TAPPED SIZE
N/A

CRANKSHAFT KEYWAY WIDTH
1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Dual Element

FUEL PUMP
No

OIL COOLER
No

LOW OIL ALERT
No

LOW OIL SHUTDOWN
Yes

IGNITION SYSTEM
Digital CDI with Variable Ignition Timing

CARBURETOR TYPE
Float

MAX RPM
3600

BOLT CIRCLE
None

PTO HEIGHT
4 – 11/64
