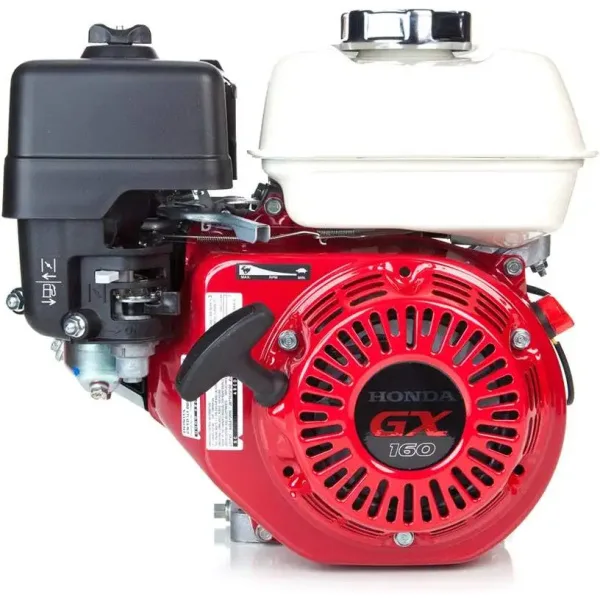

Honda GX160 RH2 Horizontal Engine

Honda GX160 RH2 Horizontal Engine
The Honda GX160 RH2 is a 163cc, air-cooled, 4-stroke, horizontal-shaft engine designed for light to medium-duty applications. With 5.5 horsepower, it is commonly used in equipment like pressure washers, generators, and small agricultural machinery.

BRAND
Honda

MODEL NUMBER
GX160-RH2

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
51

DISPLACEMENT
163cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Gear Reduction

FUEL SYSTEM
Gasoline

GEAR REDUCTION
2:1 with wet clutch

CRANKSHAFT DIMENSIONS
.86″ x 2-3/32″

CRANKSHAFT LENGTH
2-3/32″

CRANKSHAFT END TAPPED SIZE
N/A

CRANKSHAFT KEYWAY WIDTH
7 mm

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Dual Element

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Transistorized Magneto

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

BOLT CIRCLE
4

PTO HEIGHT
4 – 11/64
