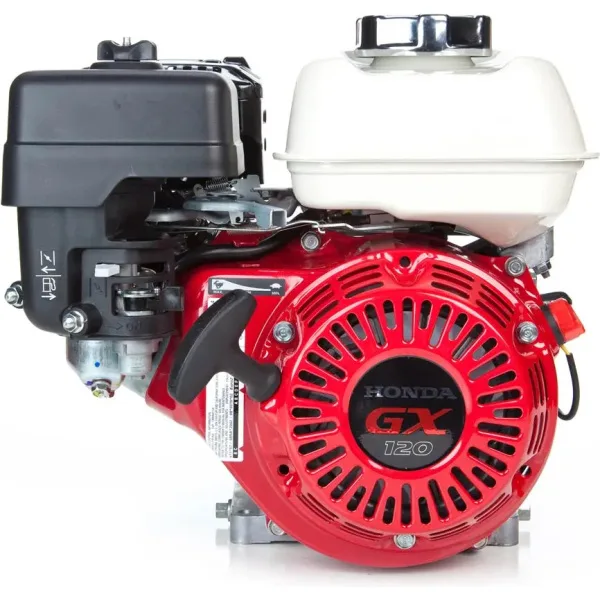

Honda GX120 HX2 Horizontal Engine

Honda GX120 HX2 Horizontal Engine
Honda GX120 HX2 (GX120UT2HX2) horizontal OHV 6:1 gear reduction engine is 120cc and puts out 3.5 net HP. This Honda GX has a 3/4″ x 1.97″ crankshaft. The engine has recoil start, a standard muffler with spark arrestor and oil alert system.

BRAND
Honda

MODEL NUMBER
GX120-HX2

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
42

DISPLACEMENT
118cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Gear Reduction

FUEL SYSTEM
Gasoline

GEAR REDUCTION
6:01

CRANKSHAFT DIMENSIONS
3/4″ x 1.97″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
1.97″

CRANKSHAFT END TAPPED SIZE
N/A

CRANKSHAFT KEYWAY WIDTH
3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Dual Element

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
19

LOW OIL ALERT
No

LOW OIL SHUTDOWN
Yes

IGNITION SYSTEM
Transistorized Magneto

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

BOLT CIRCLE
None

PTO HEIGHT
4 – 11/64
