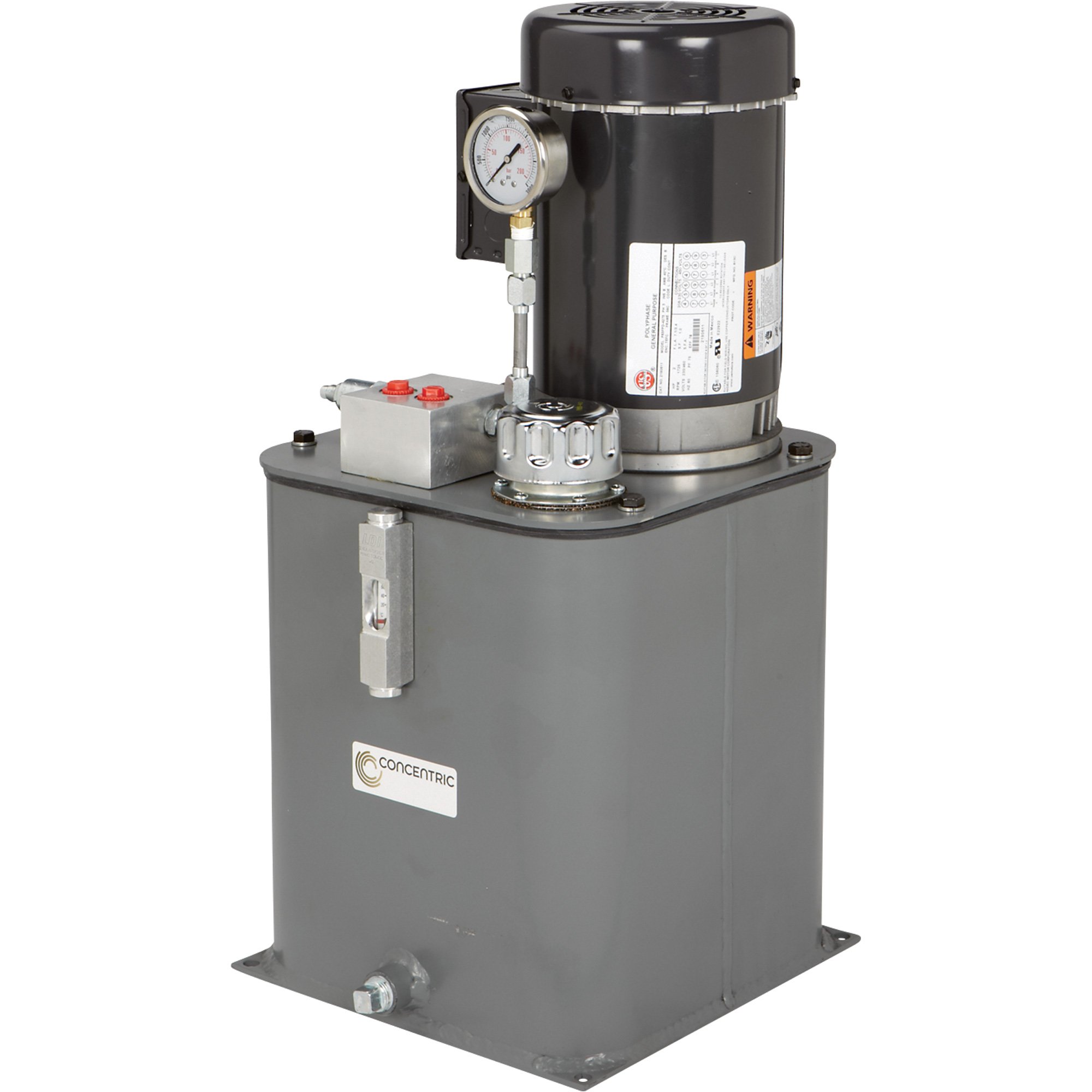

Haldex AC Hydraulic Power System Self-Contained, 2 HP, 230/460V AC, Model# 1400029
Roll over image to zoom in
$1,280.00
Handles a wide variety of industrial applications. All models have 1,725 RPM TEFC (totally enclosed, fan-cooled) motors, check valve, adjustable relief valve and 3,000 PSI pressure gauge. High strength cast iron housing. DU® bearings. Filler screen, sight gauge and flexible coupling. Hardened and ground alloy steel gears and shafts. Pressure-balanced pumps provide up to 90% overall efficiency. Ideal for systems using low viscosity fluids in high temps and high duty cycle applications. Does not include manifold or interface.
Product ManualKey Specs
| Item# | 10592 |
| Brand | Haldex |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 120.0 lbs |
| Flow (GPM) | 2 |
| Max. PSI | 1,500 |
| Max. RPM | 1,725 |
| Inlet Port (in.) | 9/16-18 SAE |
| Outlet Port (in.) | 9/16-18 SAE |
| Reservoir Capacity | 5 gal. |
| Volts | 230, 460 |
| Phase | 3 |
