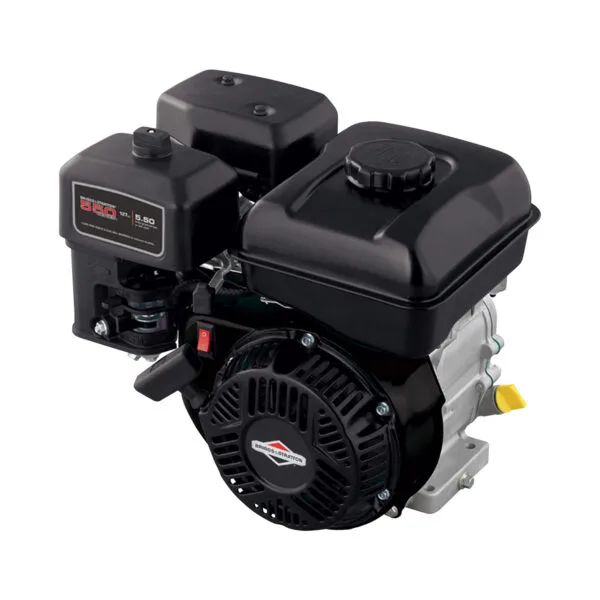

Briggs Stratton 550 Series Horizontal OHV Engine

Briggs Stratton 550 Series Horizontal OHV Engine

Brand
Briggs Stratton

Manufacturer’s Warranty
2 years

Ship Weight
35.0 lbs

Engine Displacement
127 cc

Engine Type
550 Series

Start Type
Recoil

Shaft Diameter
5/8 in

Shaft Length
2.42 in

Shaft Output
Horizontal

Shaft Keyway
0.18 in

Shaft End Tapped (Diameter (in.)/Threads per inch)
1/4-28

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

PTO Height
4.17 in

Bearing Type
Ball

Cylinders (qty.)
1

Cylinder Bore
Cast iron

Cooling System
Air cooled

Bore
2.44 in

Air Cleaner Type
Dual element

Fuel Tank
Yes

Fuel Type
Gasoline

Fuel Tank Capacity
2 qt

Fuel Filter
Yes

Oil Capacity
0.625 qt

Low Oil Alert
No

Low Oil Shutdown
No

Lubrication System
Splash

Ignition System
Electronic

Governor System
Mechanical

Carburetor
Float

Throttle Control
Manual

Choke Control
Manual

Max. RPM
3,300

Muffler Included
Yes

Auto Compression Release
Yes

CARB Approval
Yes

Dimensions L x W x H (in.)
13 x 15 x 13 in
