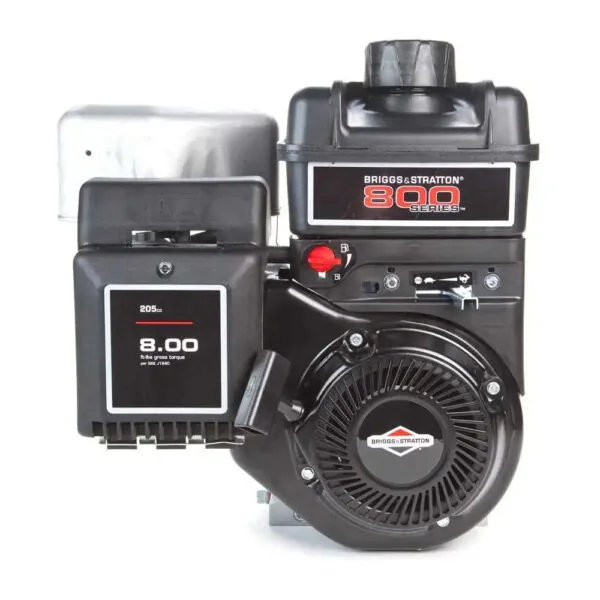

Briggs Stratton 12T132 0036 F8 Horizontal Engine

Briggs Stratton 12T132 0036 F8 Horizontal Engine
Briggs Stratton 12T102-0023-F8 horizontal 8.00 Gross Torque engine is 205cc and has a 3/4″ x 2-27/64″ crankshaft and 3/16″ keyway (Tapped 5/16-24).

BRAND
Briggs Stratton

MODEL NUMBER
12T132-0036-F8

REPLACES MODELS
120232-0536-B8 126332-0036-B1, 126332-0036-B8, 126332-0036-E1, 126332-0064-B1, 126332-0064-B8, 126332-0064-E1, 126332-0162-B1, 126332-0162-E1, 126332-0176-B1, 126332-0176-B8, 126332-0176-E1, 126332-0202-B1, 126332-0202-B8, 126332-0220-B1, 126332-0220-E1, 126332-0220-E2, 126332-0233-B1, 126332-0233-B8, 126332-0233-E1, 126332-0233-E8, 126332-0255-B1, 126332-0255-B8, 126332-0255-E1, 126332-0255-E8, 126332-0288-B1, 126332-0288-B8, 126332-0303-B1, 126332-0303-B8, 126332-0536-B1, 126332-0536-B8, 126332-1036-B8, 126332-1064-B8, 126402-0206-E1, 126432-0036-E1, 126432-0064-E1, 126432-0176-E1, 126432-0213-E1, 126432-0215-E1, 126432-0220-E1, 126432-0233-E1, 126432-0255-E1, 135202-0004-01, 135202-0005-01, 135202-0005-02, 135202-0015-01, 135202-0016-01, 135202-0114-01, 135202-0118-01, 135202-0119-01, 135202-0127-01, 135202-0136-01, 135202-0142-01, 135202-0142-03, 135202-0145-01, 135202-0150-01, 135202-0153-01, 135202-0153-02, 135202-0159-01, 135202-0185-01, 135202-0195-01, 135202-0210-02, 135202-0237-01, 135202-0238-01, 135202-0262-01, 135202-0271-01, 135202-0274-01, 135202-0276-01, 135202-0281-01, 135202-0284-01, 135202-0285-01, 135202-0293-01, 135202-0304-01, 135202-0306-01, 135202-0315-01, 135202-0316-01, 135202-0615-A1, 135202-0616-A1, 135202-0704-A1, 135202-0706-A1, 135202-0727-A1, 135202-0784-A1, 135202-1004-E1, 135202-1005-E1, 135202-1015-E1, 135202-1127-E1, 135202-1142-E1, 135202-1142-E3, 135202-1153-E2, 135202-1159-E1, 135202-1238-E1, 135202-1271-E1, 135202-1276-E1, 135202-1281-E1, 135202-1284-E1, 135202-1304-E1, 135202-1344-99, 135232-0009-01, 135232-0018-01, 135232-0019-01, 135232-0029-01, 135232-0636-A1, 135232-1036-E1, 137202-0714-A1, 137202-0714-A2, 137202-1114-E2, 126332-0036, 126332-1036

WARRANTY
2 Year

SHIPPING WEIGHT
40

DISPLACEMENT
205cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
3/4″ x 2-27/64″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2-27/64″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Aluminum Alloy

AIR CLEANER TYPE
Paper Element

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
None

BOLT CIRCLE
3-5/8″

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
