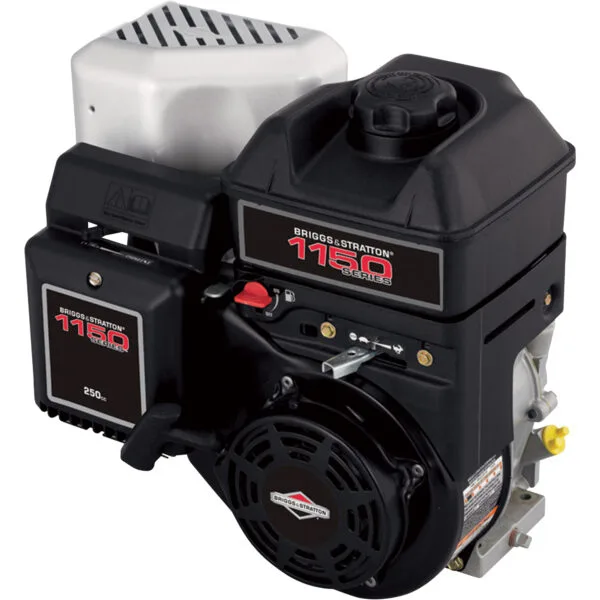

Briggs Stratton 1150 Series Horizontal OHV Engine

Briggs Stratton 1150 Series Horizontal OHV Engine

Brand
Briggs Stratton

Manufacturer’s Warranty
24 months

Ship Weight
41.28 lbs

Engine Displacement
250 cc

Engine Type
1150 Series OHV

Start Type
Recoil

Shaft Diameter
1 in

Shaft Length
2.87 in

Shaft Output
Horizontal

Shaft Keyway
0.25 in

Shaft End Tapped (Diameter (in.)/Threads per inch)
3/8-24

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

PTO Height
4.18 in

Bearing Type
Plain

Cylinders (qty.)
1

Cylinder Bore
Aluminum

Cooling System
Air cooled

Bore
2.97 in

Stroke
2.2 in

Air Cleaner Type
Pleated paper w/foam pre-cleaner

Fuel Tank
Yes

Fuel Type
Gasoline

Fuel Tank Capacity
3 qt

Fuel Filter
No

Oil Capacity
0.625 qt

Low Oil Alert
No

Low Oil Shutdown
No

Lubrication System
Splash

Ignition System
Electronic

Governor System
Mechanical

Carburetor
Float

Throttle Control
Manual, remote, adjustable (constant speed)

Choke Control
Manual

Max. RPM
3,800

Muffler Included
Yes

Auto Compression Release
Yes

CARB Approval
Yes

Bolt Circle
3.625 in

Dimensions L x W x H (in.)
18 x 17 x 20 in
